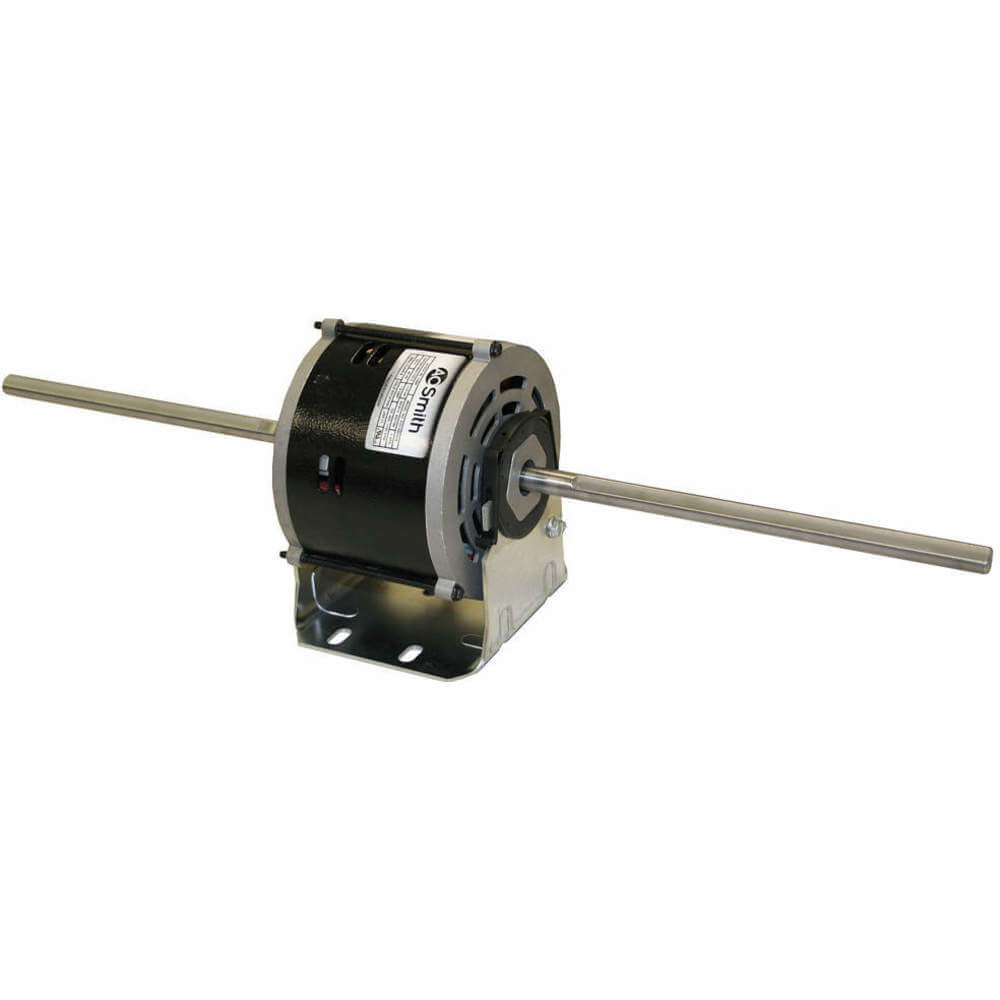

| Item | ECM Direct Drive Blower Motor |
| Ambient Temp. Range | -40 to 40 Degrees C |
| Bearings | Ball |
| Body Dia. | 5" |
| Bolt Circle Dia. | 2.5" |
| Capacitor Required | No |
| Duty | Continuous |
| Enclosure | Open Air-Over |
| Frame | 42 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.6 |
| HP | 1/10 |
| Hz | 60 |
| Insulation Class | B |
| Length Less Shaft | 3 13/16" |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | H VAC/R |
| Motor Design | ECM |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWLE |
| Motor Sub Application | Room Air Conditioner |
| Motor Thermal Protection | Auto |
| Motor Type | ECM |
| Mounting | Cradle |
| Mounting Position | Horizontal |
| Nameplate RPM | 1100 |
| Number of Speeds | 3 |
| Overall Length | 22.437" |
| Phase | 1 |
| Plug Type | 5-Wire, Standard |
| Rotation | CWLE |
| RPM Range | 1001-1100 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 9 5/16" |
| Shaft Type | Double |
| Thermal Protection | Automatic |
| Voltage | 120 |
| Ship weight (kg) | 4.97 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 69.09 |
| Ship width (cm) | 18.54 |
| HS code | 8501312000 |
| Country of Origin | US |
